SD604 55276
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1975–1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 133996
-
- alternative name: Löwe Radio

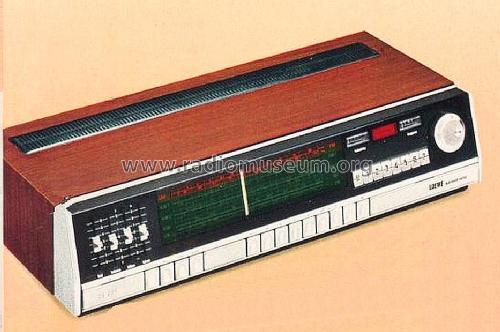

Interfunk Katalog 1976
Interfunk Katalog 1976

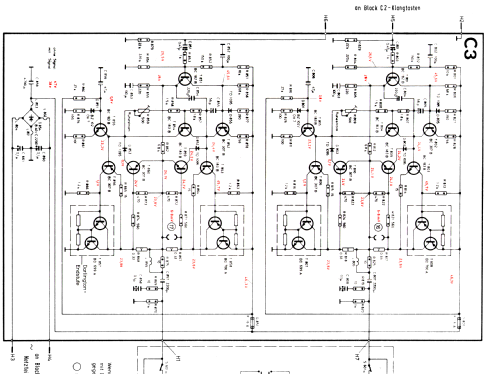

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 48
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: SD604 55276 - Loewe-Opta; Deutschland
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 590 x 130 x 270 mm / 23.2 x 5.1 x 10.6 inch
- Notes
- ICs: 5.
Loewe Opta HiFi-Stereo-Steuergerät SD604.
Ausgangsleistung: 2× 27,5 W (Sinus)
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Source of data
- Handbuch VDRG 1975/1976
- Mentioned in
- Handbuch VDRG 1976/1977
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
