• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1982/1983

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 245576

• • alternative name: Löwe Radio

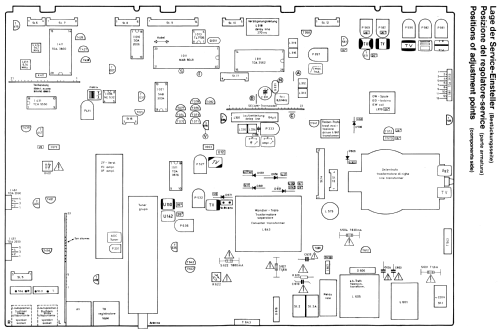

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A66-540X

• Number of Transistors
• Semiconductors present.

• Semiconductors
• MAB8048 NE532 SAB3034 SDA2006 TDA2030 TDA2030 TDA2653 TDA3562 TDA3576 TDA3800 TCA5550 TL7705

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 200 - 250 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: SE 26 Stereo System 30 Ch= 110 C8, Artikel-Nr. 62440 - Loewe-Opta; Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 780 x 545 x 450 mm / 30.7 x 21.5 x 17.7 inch

• Notes

• Loewe SE26 Artikel-Nr. 62440 Stereo System 30. Eingerichtet für Mono, Stereo und Zweiton-Betrieb.

  Fernbedienung FB50.

  Gehäuse auch in hellgraumetallic erhältlich.

• Mentioned in
• - - Manufacturers Literature (Loewe Katalog TV-Video-HiFi 1982/83 S. 16)

• Literature/Schematics (1)
• -- Original-techn. papers. (Service-Anleitung datiert 7-9-83)

• Author
• Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
