• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1927–1929

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 206753

• • alternative name: Löwe Radio

• Main principle
• RF-Circuit or wave trap (separate, can also be an antenna with amp.)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Special material, described in the notes.

• from Radiomuseum.org
• Model: Spezial-Spulen-Satz für 2H3N Fernempfänger - Loewe-Opta; Deutschland

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 310 x 130 x 170 mm / 12.2 x 5.1 x 6.7 inch

• Notes
• Spezial-Spulen-Satz für Loewe Fernempfänger 2H3N.

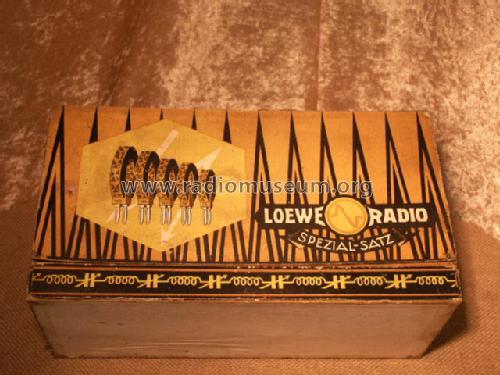

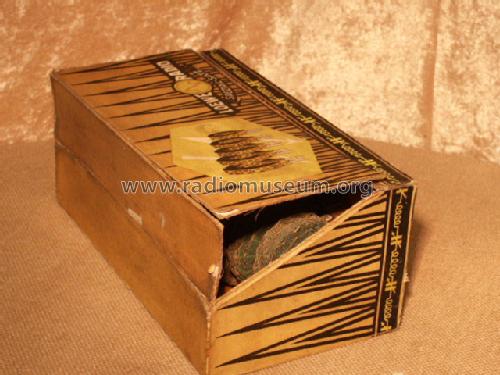

  In einer spezialen Klappbox aus Hartkarton.

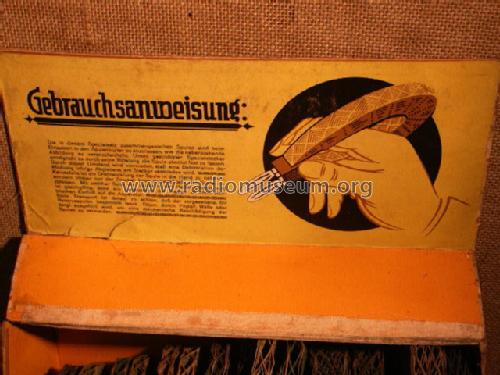

  Mit Gebrauchsanweisungen im Deckel.

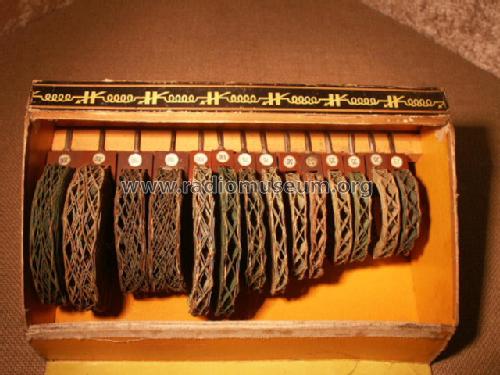

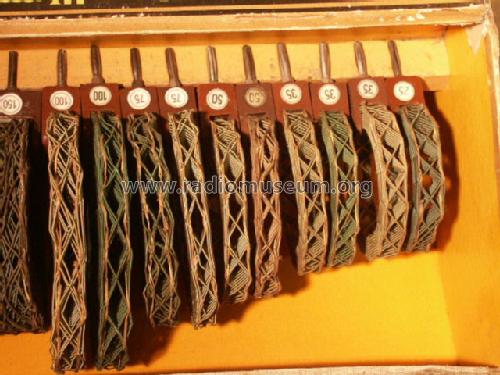

  Komplett 14 Spulen mit unterschiedlichen Wicklungen:
  2 x 200, 2 x 150, 2 x 100, 2 x 75, 2 x 50, 3 x 35, 1 x 25 Windungen.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 27.70 RM

• Source of data
• - - Data from my own collection

• Mentioned in

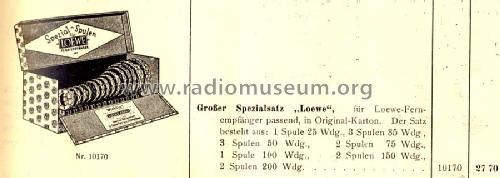

• A. Stark, Preisliste 1929
