• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28032

• • alternative name: Löwe Radio

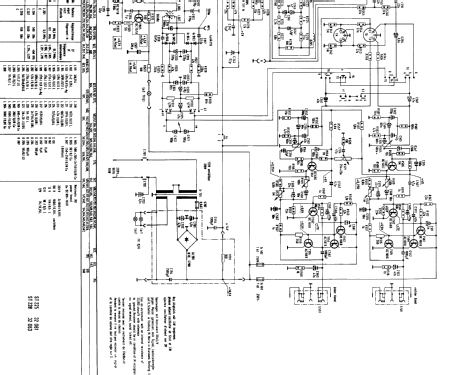

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: ST228 32063 - Loewe-Opta; Deutschland

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 482 x 125 x 196 mm / 19 x 4.9 x 7.7 inch

• Notes
• Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 3,6 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971
