ST286 52272
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1972/1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28760
-
- alternative name: Löwe Radio
- Number of Transistors
- 40
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 130; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

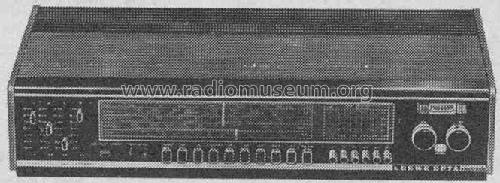

- Model: ST286 52272 - Loewe-Opta; Deutschland
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 620 x 135 x 255 mm / 24.4 x 5.3 x 10 inch
- Notes
- HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 25 W (Sinus).
- Net weight (2.2 lb = 1 kg)
- 8.6 kg / 18 lb 15.1 oz (18.943 lb)
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1972/1973
