• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1974 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164844

• • alternative name: Löwe Radio

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

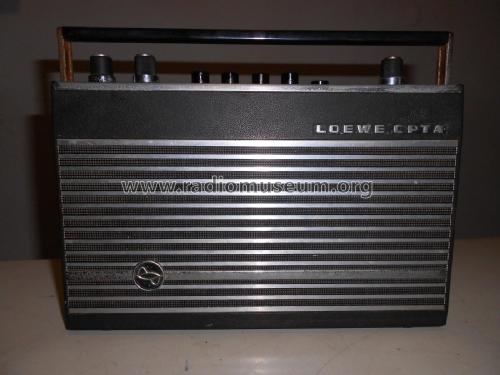

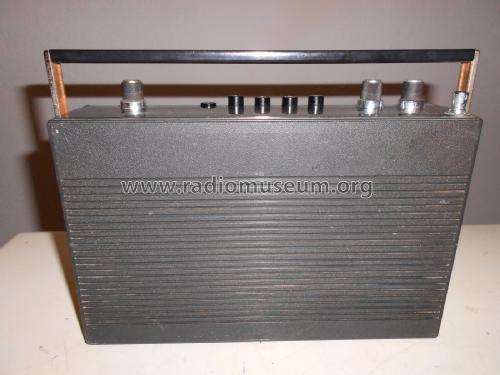

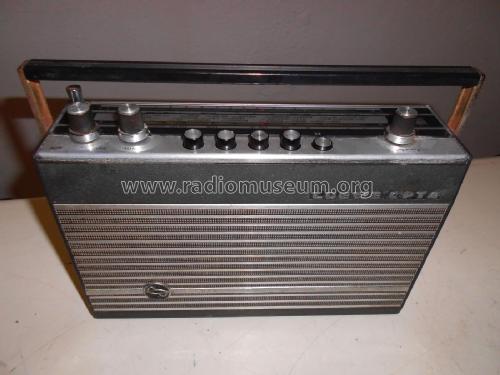

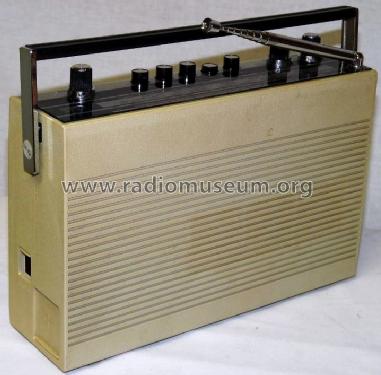

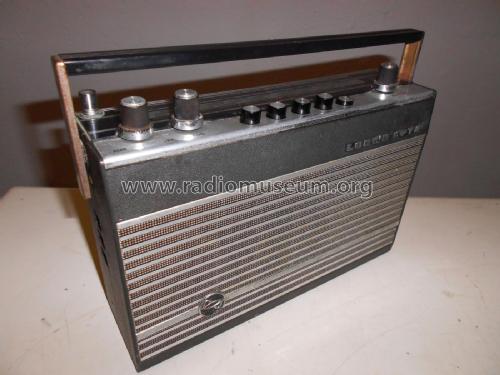

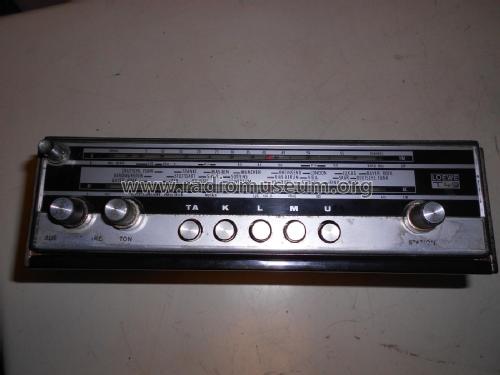

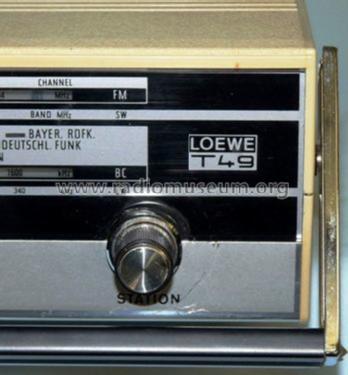

• Model: T49 - Loewe-Opta; Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 170 x 77 mm / 10.4 x 6.7 x 3 inch

• Notes
• Eingänge: Phono/Tonband oder Kasettenrecorder über Din 5-pol Buchse, Anschluß für ext. Netzgerät DC-6/7,5 Volt, Kopfhöreranschluß über Klinkenbuchse 3,5 mm, Teleskopantenne 80 cm, Ferritantenne 20 cm, Ovallautsprecher 8 x 14 cm.

• Net weight (2.2 lb = 1 kg)
• 1.630 kg / 3 lb 9.4 oz (3.59 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
