TC400 55202
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1975–1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 134199
-
- alternative name: Löwe Radio
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / 4×1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TC400 55202 - Loewe-Opta; Deutschland
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 325 x 185 x 76 mm / 12.8 x 7.3 x 3 inch
- Notes

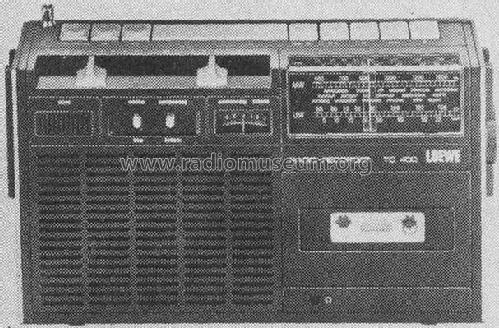

- Loewe Opta Radio-Recorder TC400.
Eingebautes Mikrofon; Frequenzumfang des Recorders: 80···8000 Hz ± 6 dB.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Source of data
- Handbuch VDRG 1975/1976
- Mentioned in
- Handbuch VDRG 1976/1977
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
