• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24924

• • alternative name: Löwe Radio

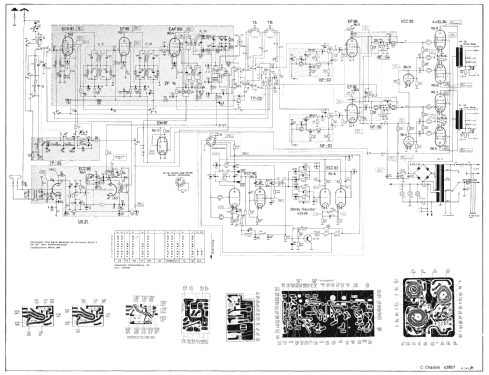

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• ECC85 ECH81 EF89 EAF801 EM87 EF86 EF86 ECC83 ECF80 ECC83 EL84 EL84 EL84 EL84

• Number of Transistors
• 1

• Semiconductors
• AC127

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

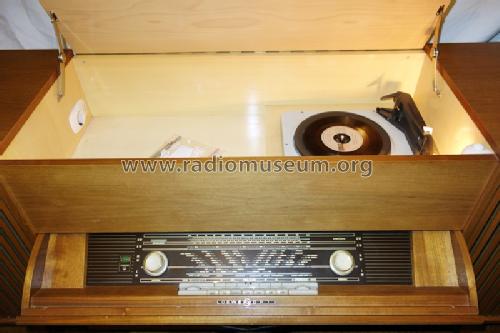

• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

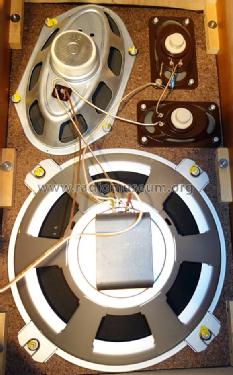

• Loudspeaker
• 7 or more Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

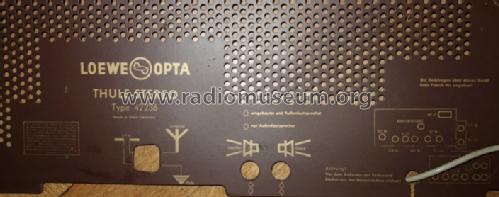

• Model: Thule-Stereo 42236 Ch= 42837 - Loewe-Opta; Deutschland

• Shape

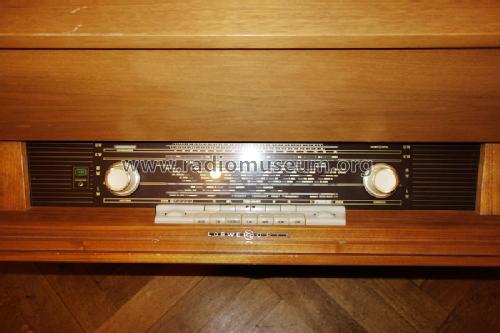

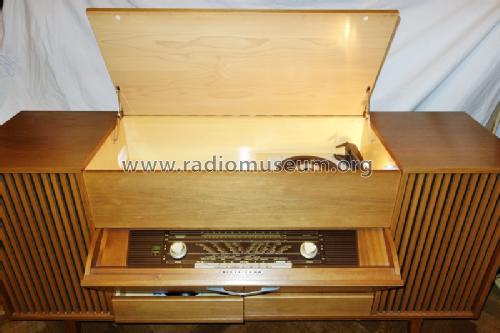

• Console with Push Buttons.

• Dimensions (WHD)
• 1590 x 805 x 410 mm / 62.6 x 31.7 x 16.1 inch

• Notes

• Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 10 W ;
  Phono-Chassis = Dual 1008.

• Net weight (2.2 lb = 1 kg)
• 65 kg / 143 lb 2.7 oz (143.172 lb)

• Price in first year of sale
• 1,398.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964

• Literature/Schematics (1)

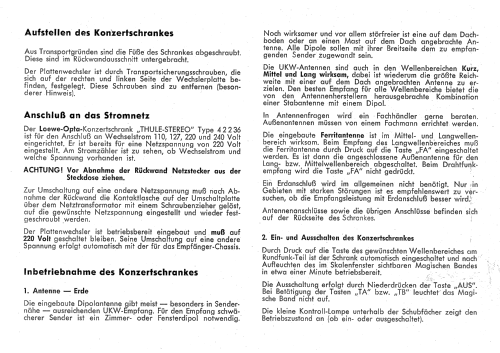

• -- Original-techn. papers.
