Vineta W
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2603
-
- alternative name: Löwe Radio
Click on the schematic thumbnail to request the schematic as a free document.

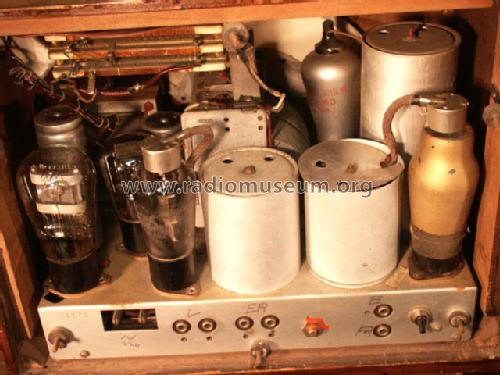

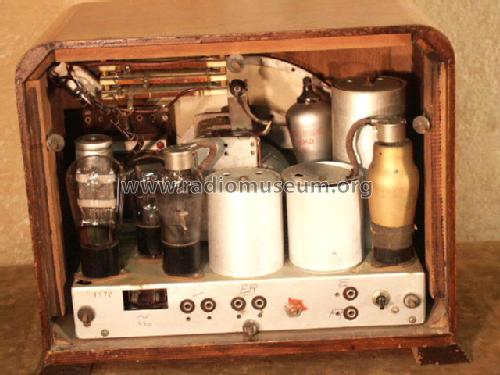

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 430 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material

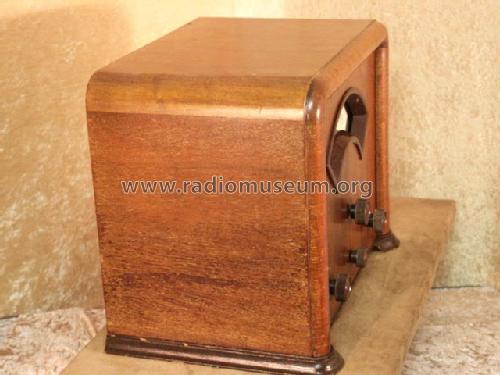

- Wooden case
- from Radiomuseum.org
- Model: Vineta W - Loewe-Opta; Deutschland
- Dimensions (WHD)
- 395 x 310 x 275 mm / 15.6 x 12.2 x 10.8 inch
- Notes
- ab Nr.501 and.Sch.
- Price in first year of sale
- 227.00 RM !
- Source of data

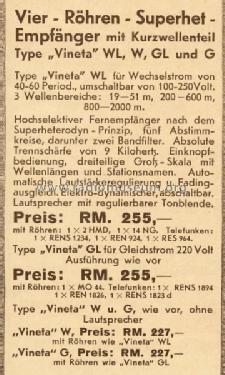

- Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange + FS-Bestückungstabellen
