- Country
- Germany
- Manufacturer / Brand
- Phonetika Radio GmbH, Berlin (gehörte zu Loewe-Opta [639070])
- Year
- 1949–1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2695

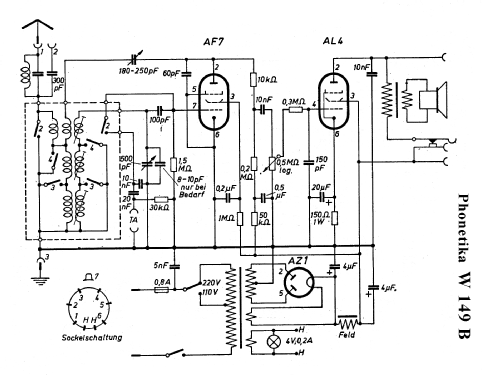

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

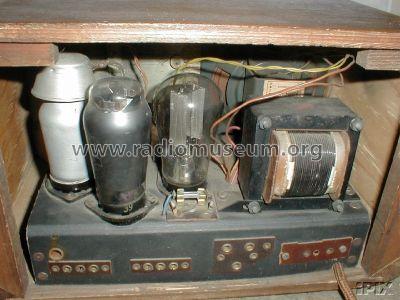

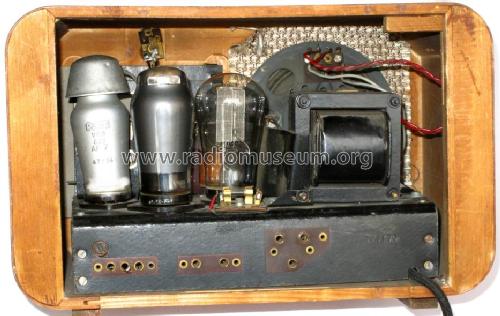

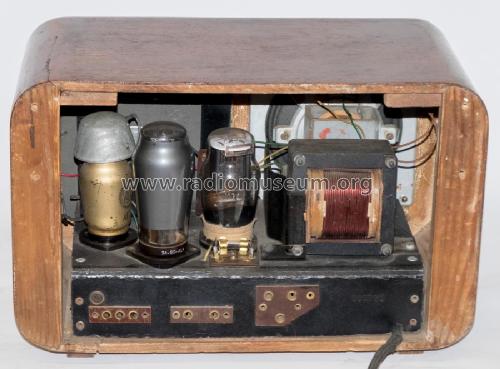

- Model: W149B - Phonetika Radio GmbH, Berlin
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 335 x 220 x 200 mm / 13.2 x 8.7 x 7.9 inch
- Notes
- Nachfolger des W149, jetzt aber mit Chassis aus Presspappe.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Hermann Rottmann und Fred P. Langheinrich hatten mir dieses Gerät erstmals bekannt gemacht. Sie verfügen jedoch nicht über Schaltungen darüber oder weitere Informationen, sondern haben mir bei der Recherche geholfen. Danke.
