• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3134

• • Brand: SEL

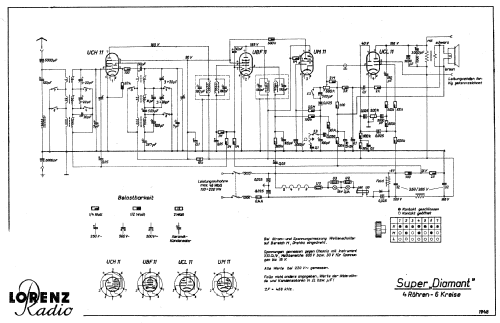

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UCH11 UBF11 UCL11 UM11

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Diamant I - Lorenz; Berlin, Zuffenhausen u

• Notes
• Werk Berlin (1B5)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkgeschichte der GFGF (9503)
