• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3161

• • Brand: SEL

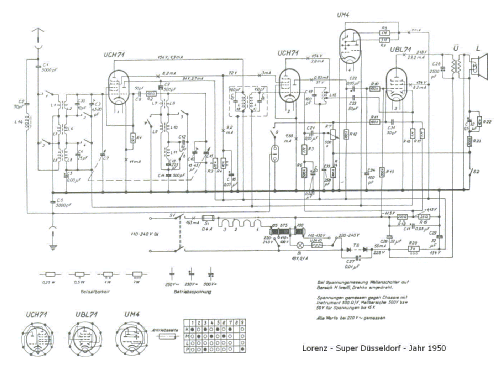

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH71 UCH71 UBL71 UM4

• Number of Transistors

• Semiconductors
• U2410PL Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Düsseldorf - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 320 x 200 mm / 17.7 x 12.6 x 7.9 inch

• Notes
• (1SP6)

• Net weight (2.2 lb = 1 kg)
• 6.4 kg / 14 lb 1.6 oz (14.097 lb)

• Price in first year of sale
• 275.00 DM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funkschau (5005)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 733 models, 588 with images and 359 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
