• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1962 ?

• Category
• Telephony - wire and wireless

• Radiomuseum.org ID
• 312867

• • Brand: SEL

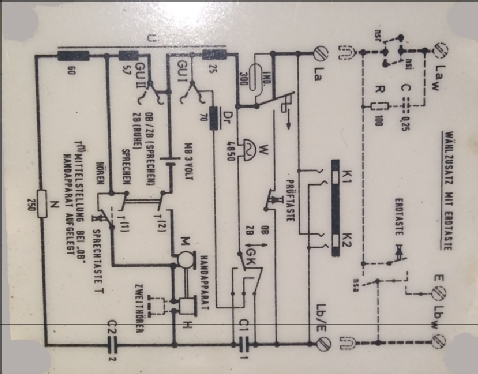

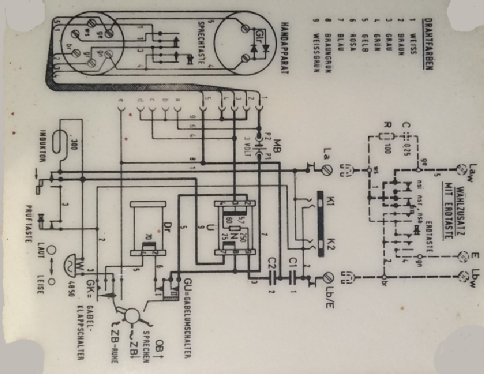

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / Size D: 2 x 1,5 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Feldtelefon Field Telephone Fspr Ger Satz 5805-12-168-4393 VersNr. 12-123-9923 - Lorenz; Berlin, Zuffenhausen u

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 170 x 120 mm / 10.4 x 6.7 x 4.7 inch

• Notes

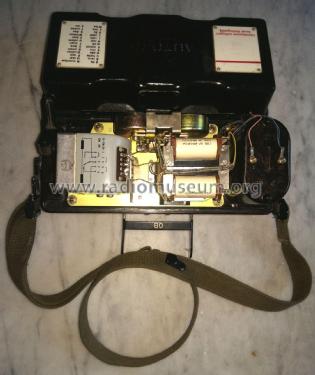

• A Field Telephone working M2M, with internal generator, and with the possibility of working as a home telephone, with its disk to dial normally the phone numbers.

  This appareil was produced by "Standard Elektrik Lorenz" in Germany, a company under control of Alcatel since 1986.

  -------------------------

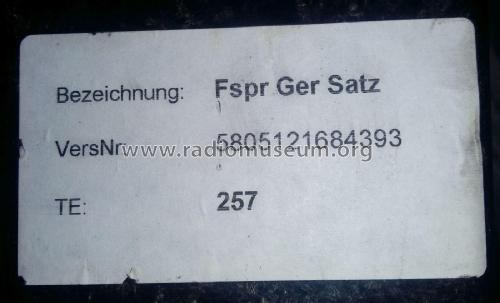

  Bundeswehr-Versorgungsnummer (VersNr) des Apparates 12-123-9923, das komplette Set (Fspr Ger Satz = Fernsprecher Geräte Satz) mit Wählzusatz FF OB ZB hat die VersNr. 5805-12-168-4393

  Siehe auch das ähnliche Modell Feldfernsprecher FF54 OB/ZB mit der VersNr. 5805-12-120-4847

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
