• Year
  • 1953/1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 19367
    • Brand: SEL

Click on the schematic thumbnail to request the schematic as a free document.

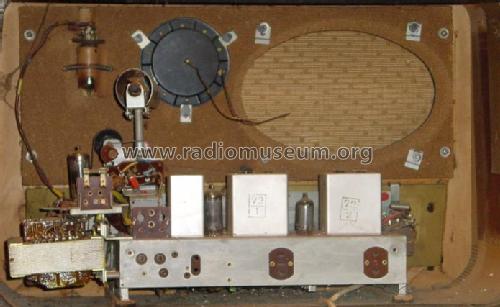

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 472/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: H1 4072 - Lorenz; Berlin, Zuffenhausen u
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 550 x 365 x 230 mm / 21.7 x 14.4 x 9.1 inch
  • Notes
  • 1 Lautsprecher, oval, 1 HT-Lautsprecher, rund

  • Net weight (2.2 lb = 1 kg)
  • 8.4 kg / 18 lb 8 oz (18.502 lb)
  • Price in first year of sale
  • 332.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Schematic
