• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142834

• • Brand: SEL

• Number of Tubes
• 9

• Valves / Tubes
• 6AU6 6BA6 ECH42 EAF42 EM71 EAA91 EAF42 EL41 AZ11

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

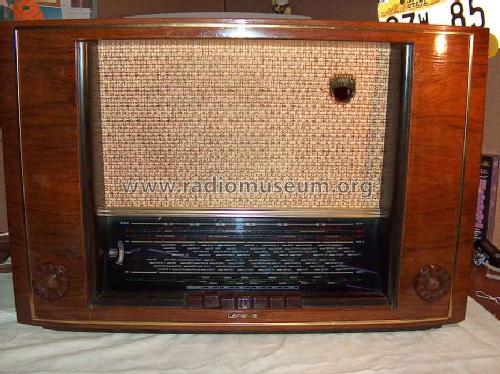

• Model: Jubiläums-Super Grossglockner [Export CH] - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 402 x 260 mm / 24.4 x 15.8 x 10.2 inch

• Notes
• Wellenbereiche: LW, 2×MW, 2×KW, UKW. Baugleich mit Lorenz Grossglockner (ID=19104), PTT-Aufkleber, Export-Modell für die Schweiz.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Markus Schumacher. See "Data change" for further contributors.
