- Country
- Germany
- Manufacturer / Brand
- Lorenz; Berlin, Zuffenhausen u.a.
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3084
-
- Brand: SEL
from Radio Mentor

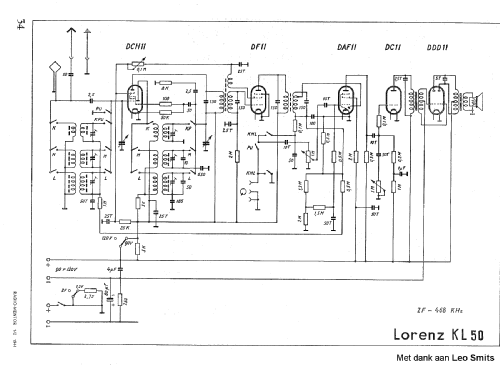

Quelle: Radio-Mentor 1941, Heft 4, S. 178
Radio-Mentor, 1944, Heft 1/2, S.33

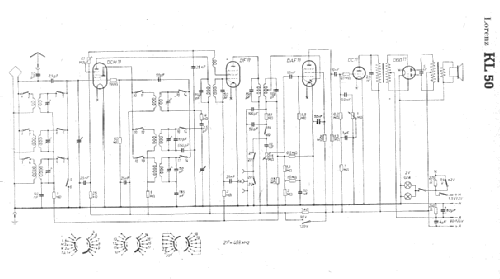

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 90-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: KL50 - Lorenz; Berlin, Zuffenhausen u
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Other Models
-
Here you find 732 models, 586 with images and 359 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
