Kleinstudiogerät KSG215

• Country
• Germany

• Manufacturer / Brand
• Lorenz i.V. Leipzig (Ostd.)

• Year
• 1955 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 114651

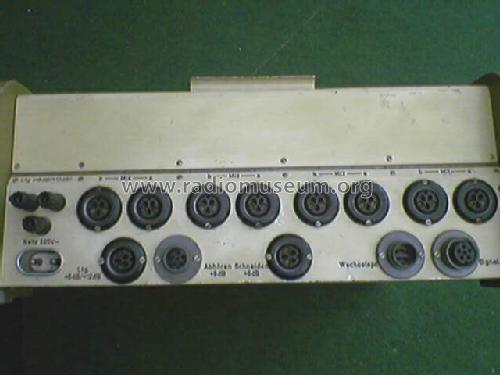

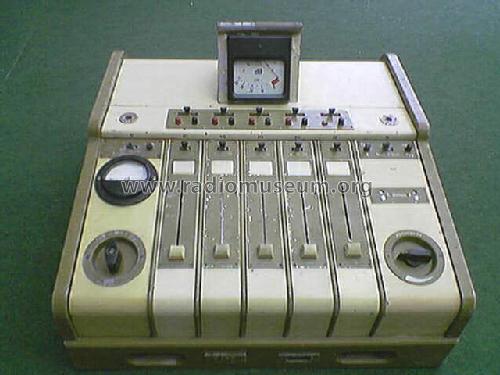

• Picture

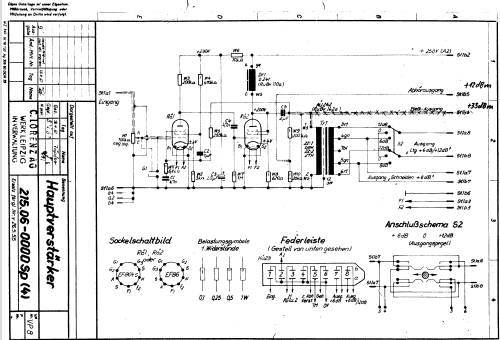

• Schematics

Previous Next

Previous Next

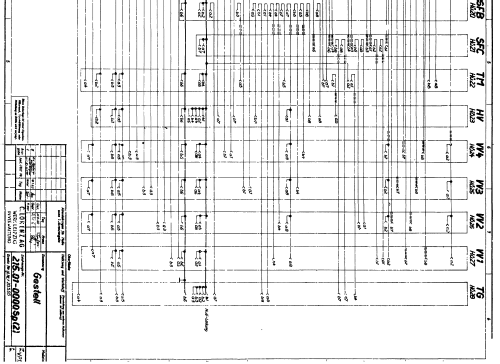

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• EF86 EF86 EF86 EF86 EF86 EF86 EF86 EF86 EBF80 EF86 EBF80 EF85 EF86 EF86 EF86 EF86 EZ80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Kleinstudiogerät KSG215 - Lorenz i.V. Leipzig Ostd.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 486 x 212 x 492 mm / 19.1 x 8.3 x 19.4 inch

• Notes
• Kleinmischpult; produziert von C. Lorenz in Leipzig, modularer Aufbau: Netzteil, Bedienteil, Tongenerator, 4× Vorverstärker, Summenverstärker, Schaltnetzwerk, Abhörverstärker, Rundfunkbezeichnung: V 45. Frequenzgang 30 ... 15000 Hz (-3 dB, +1 dB), Verstärkung 72 dB, Klirrfaktor < 1%.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
