• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142441

• • Brand: SEL

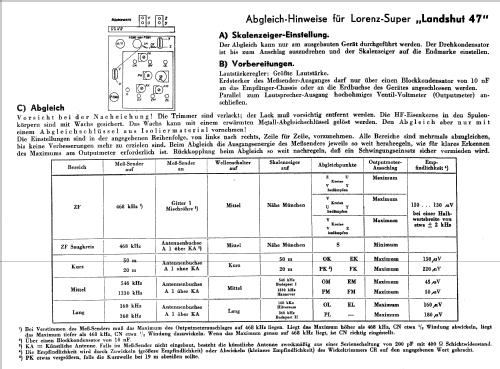

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RV12P2000 RV12P2000 UL71

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Landshut 47 - Lorenz; Berlin, Zuffenhausen u

• Notes

• Der neutralisierte ZF-Verstärker mit Röhre RV12P2000 arbeitet in Reflexschaltung als 1. NF-Stufe.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Rudolf Müller. See "Data change" for further contributors.
