Landshut GW4/6
Lorenz; Berlin, Zuffenhausen u.a.
- Country
- Germany
- Manufacturer / Brand
- Lorenz; Berlin, Zuffenhausen u.a.
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3103
-
- Brand: SEL

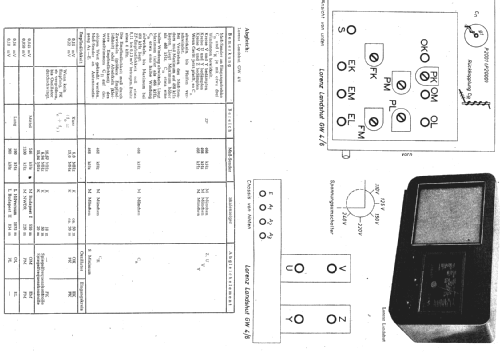

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s); Reflex
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Landshut GW4/6 - Lorenz; Berlin, Zuffenhausen u
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 475 x 280 x 226 mm / 18.7 x 11 x 8.9 inch
- Notes
-
Der neutralisierte ZF-Verstärker arbeitet in Reflexschaltung als 1. NF-Stufe.
- Price in first year of sale
- 435.00 RM
- Source of data
- Die Radio-Reparatur (329) / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange + Schenk Nr. 30 von 1948
- Mentioned in
- Radio-Mentor (4806)
- Literature/Schematics (1)
- Lange / Nowisch, "Empfängerschaltungen der Radioindustrie" (Band IV, S.132)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
