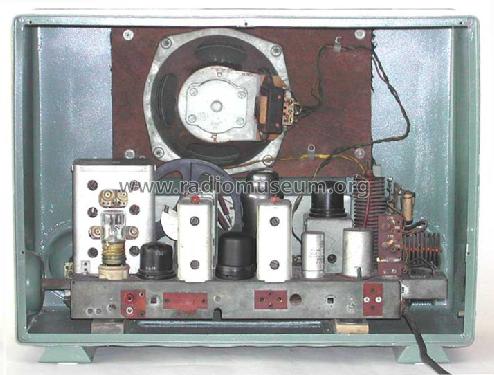

Loretta EN1
Lorenz; Berlin, Zuffenhausen u.a.
- Country
- Germany
- Manufacturer / Brand
- Lorenz; Berlin, Zuffenhausen u.a.
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68882
-
- Brand: SEL
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Loretta EN1 - Lorenz; Berlin, Zuffenhausen u
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 380 x 210 mm / 19.7 x 15 x 8.3 inch
- Notes
- Mit BFO; Markierskala.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 895.00 DM
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
