- Country
- Germany
- Manufacturer / Brand
- Lorenz; Berlin, Zuffenhausen u.a.
- Year
- 1937–1940
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 3044
-
- Brand: SEL

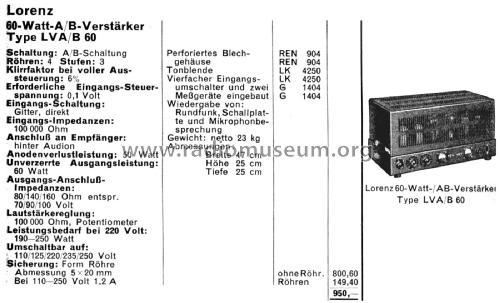

Q: Katalog RF-Großhandel '38
- Number of Tubes
- 6
- Main principle
- Audio-Amplification; 3 AF stage(s)
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 235; 250 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 60 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: LVA/B60 - Lorenz; Berlin, Zuffenhausen u
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 430 x 230 x 230 mm / 16.9 x 9.1 x 9.1 inch
- Notes
- Eingangs-Steuerspannung: 0,1 V; Ausgangs-Impedanzen:70/80/90/100/140/160 Ohm.
- Net weight (2.2 lb = 1 kg)
- 21.5 kg / 47 lb 5.7 oz (47.357 lb)
- Price in first year of sale
- 960.00 RM
- Source of data
- Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
