Melde- und Alarmempfänger E-29
Lorenz; Berlin, Zuffenhausen u.a.
- Country
- Germany
- Manufacturer / Brand
- Lorenz; Berlin, Zuffenhausen u.a.
- Year
- 1960
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 183909
-
- Brand: SEL

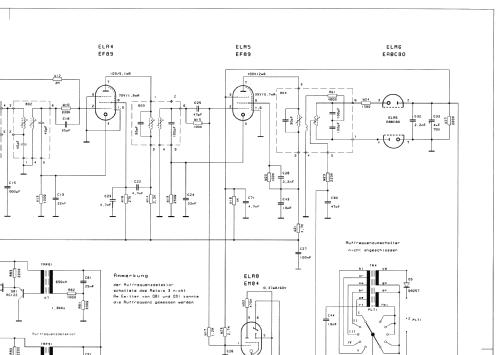

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Melde- und Alarmempfänger E-29 - Lorenz; Berlin, Zuffenhausen u
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 330 x 305 x 135 mm / 13 x 12 x 5.3 inch
- Notes
- Melde- und Alarmempfänger für BOS (4 m-Band).
Durchstimmbar im Bereich 85,075 bis 87,175 MHz (Kanäle 00 bis 42).
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
