• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3008

• • Brand: SEL

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1284 AB1 RES964 RGN1064

• Main principle
• TRF with diode detector; 1 Special; 1 AF stage(s); Reflex

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

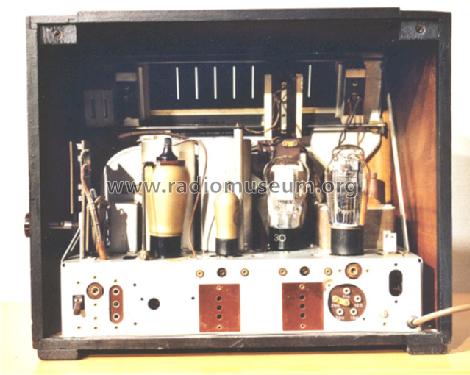

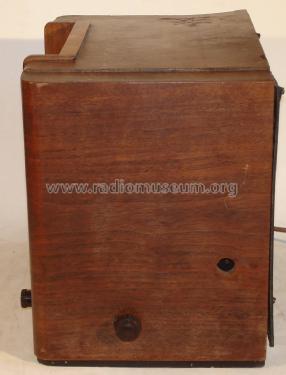

• Model: Reflex W - Lorenz; Berlin, Zuffenhausen u

• Dimensions (WHD)
• 455 x 355 x 335 mm / 17.9 x 14 x 13.2 inch

• Notes
• Pultskala; Reflex

• Net weight (2.2 lb = 1 kg)
• 13.6 kg / 29 lb 15.3 oz (29.956 lb)

• Price in first year of sale
• 203.00 RM

• Source of data
• Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Radio-Katalog, Mix & Genest Hansawerke, 1935

• Other Models

• Here you find 732 models, 587 with images and 359 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
