• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 172660

• • Brand: SEL

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• RV12P2000 RV12P2000

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org

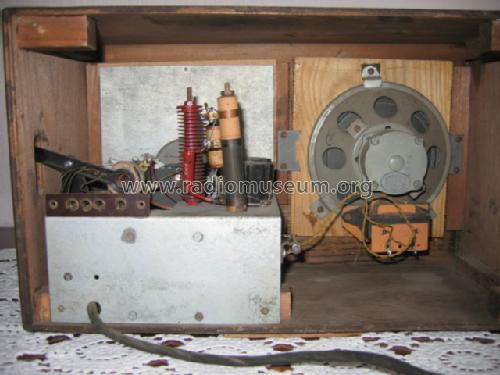

• Model: S 47 - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 360 x 220 x 160 mm / 14.2 x 8.7 x 6.3 inch

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Author
• Model page created by Anton Schefzik. See "Data change" for further contributors.
