Super 120A
Lorenz; Berlin, Zuffenhausen u.a.
- Country
- Germany
- Manufacturer / Brand
- Lorenz; Berlin, Zuffenhausen u.a.
- Year
- 1942–1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3087
-
- Brand: SEL

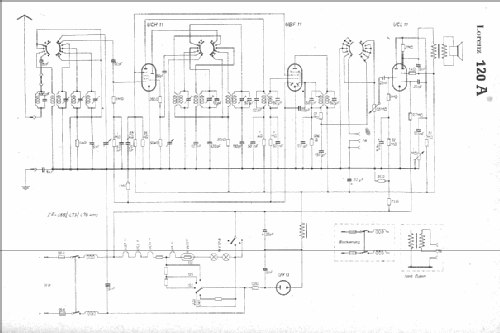

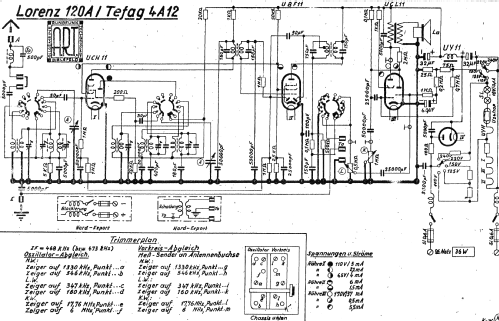

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 478 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-240 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super 120A - Lorenz; Berlin, Zuffenhausen u
- Dimensions (WHD)
- 410 x 250 x 230 mm / 16.1 x 9.8 x 9.1 inch
- Notes
- Nora-Exp.=Detänd.Sch.ZF=468/473/478
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Other Models
-
Here you find 732 models, 586 with images and 359 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
