• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3066

• • Brand: SEL

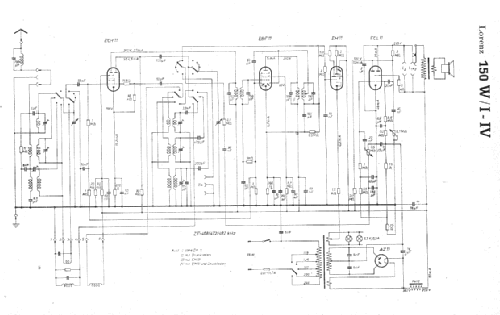

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11 EM11

• Main principle
• Superheterodyne (common); ZF/IF 482 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super 150W/II - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 310 x 260 mm / 21.3 x 12.2 x 10.2 inch

• Notes
• var.BBr.;6 S-Tasten

• Net weight (2.2 lb = 1 kg)
• 13.4 kg / 29 lb 8.2 oz (29.515 lb)

• Price in first year of sale
• 219.00 RM

• Source of data
• Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

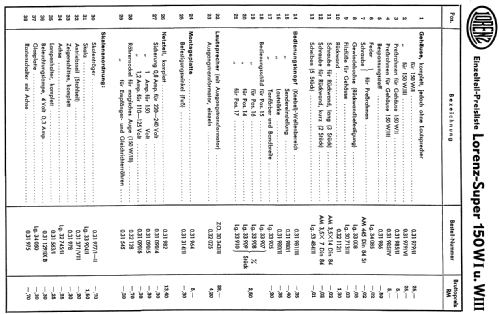

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Picture reference

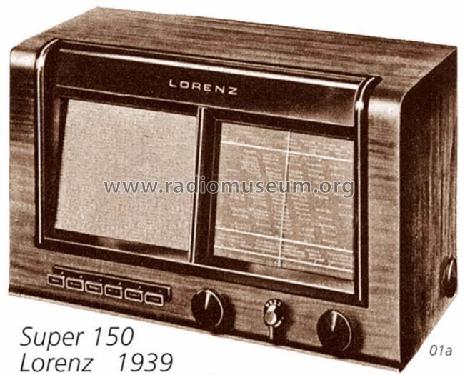

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
