• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151496

• • Brand: SEL

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11 EM11

• Main principle
• Superheterodyne (common)

• Power type and voltage
• Alternating Current supply (AC)

• Material
• Wooden case

• from Radiomuseum.org

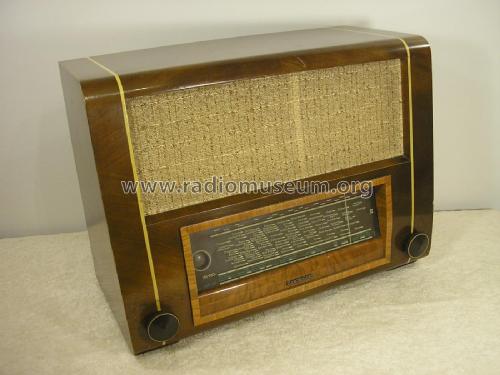

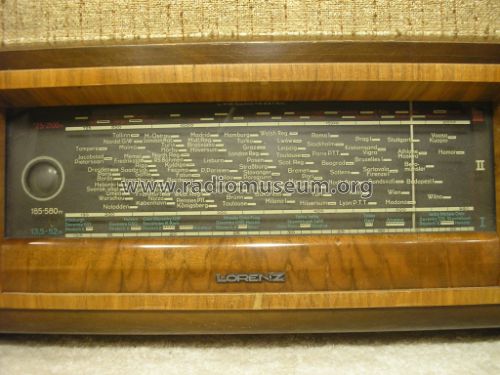

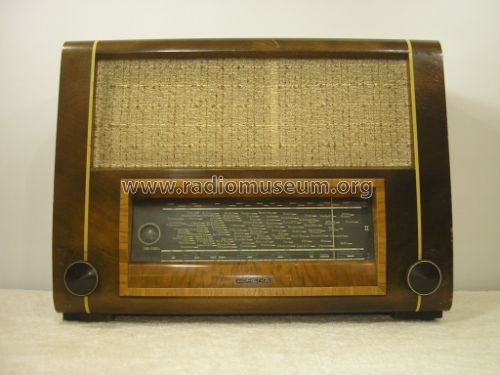

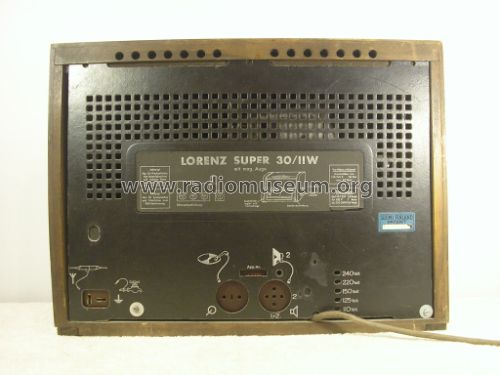

• Model: Super 30W/II - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel, low profile (big size).

• Notes
• Typenbezeichnungen Super 30W/II bzw 30A/II bzw. S30 bzw Super 30. Wird in den derzeitigen Fachzeitschriften unterschiedlich benannt. Gleiche Schaltung wie Tefag 30W.

• Literature/Schematics (1)
• Funkgeschichte GFGF Heft 130, S.99

• Author
• Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.

• Other Models

• Here you find 732 models, 586 with images and 359 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
