• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3023

• • Brand: SEL

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RENS1284 RENS1374d RGN1064

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tonmeister W - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 270 x 265 mm / 22.8 x 10.6 x 10.4 inch

• Notes

• Flachbau

• Price in first year of sale
• 161.00 RM

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

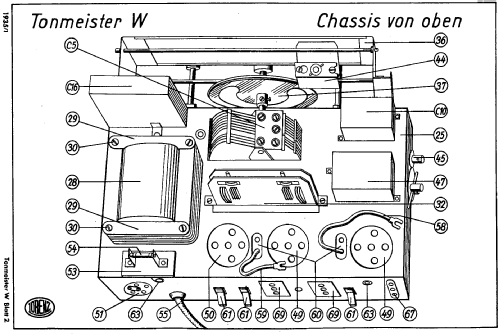

• Literature/Schematics (1)

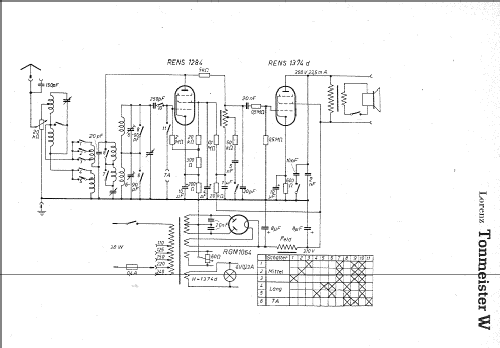

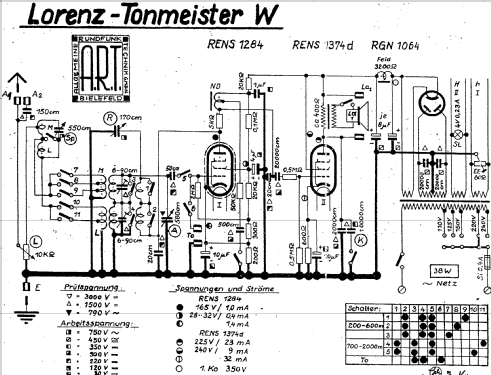

• -- Schematic (OTO-Schaltungen)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
