• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3207

• • Brand: SEL

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

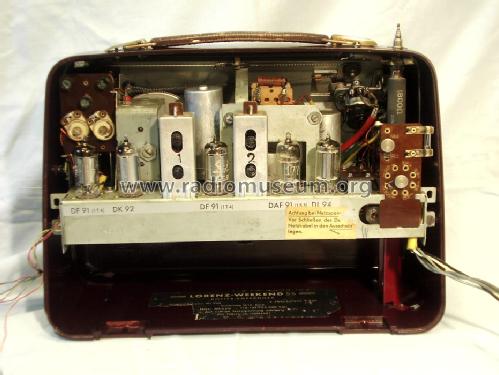

• DF91 DK92 DF91 DAF91 DL94

• Main principle
• Superhet with RF-stage; ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org

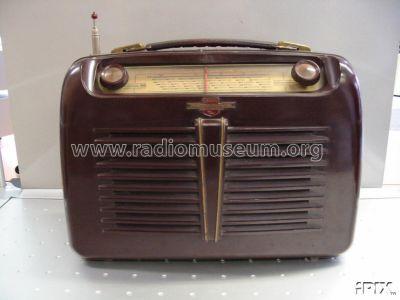

• Model: Weekend 55 - Lorenz; Berlin, Zuffenhausen u

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 210 x 130 mm / 11.8 x 8.3 x 5.1 inch

• Notes
• Wie Schaub-Amigo ohne UKW.

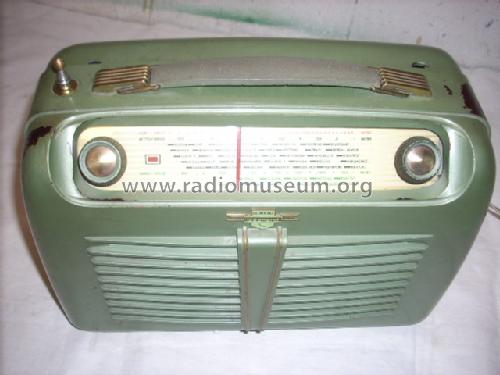

  Bakelit braun. Andere Farben sind nicht original!

• Net weight (2.2 lb = 1 kg)
• 5.4 kg / 11 lb 14.3 oz (11.894 lb)

• Price in first year of sale
• 209.00 DM

• External source of data
• Ernst Erb, HB9RXQ

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55
