• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1945–1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3093

• • Brand: SEL

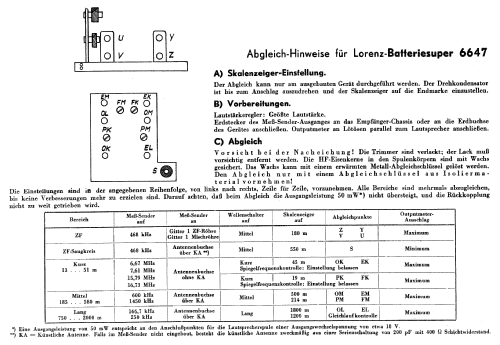

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• RV12P2000 RV12P2000 RV12P2000 RV12P2000 RV12P2000 RV12P2000

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Zwergsuper II 6647GW - Lorenz; Berlin, Zuffenhausen u

• Notes
• Werk Berlin (-ZP1,1G1-0002).

• Price in first year of sale
• 500.00 RM

• Source of data
• Die Radio-Reparatur (329) / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Schenk/Regelien Nr. 29 von 1947

• Mentioned in
• Funkgeschichte der GFGF (9503)
