• Country
• Germany

• Manufacturer / Brand
• Lorenz i.V. Leipzig (Ostd.)

• Year
• 1965

• Category
• Morse-Equipment & TTY, RTTY, TDD etc.

• Radiomuseum.org ID
• 146707

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

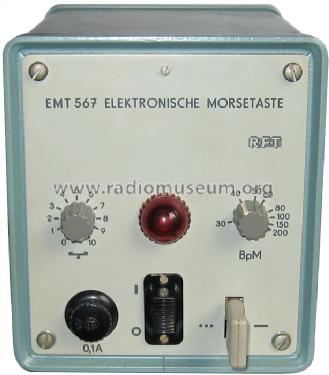

• Model: Elektronische Morsetaste EMT567 - Lorenz i.V. Leipzig Ostd.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 135 x 150 x 175 mm / 5.3 x 5.9 x 6.9 inch

• Notes
• RFT Elektronische Morsetaste EMT567.
  Einstellbare Tastgeschwindigkeit 30···200 BpM; einstellbares Tastverhältnis; interner Tongenerator mit Ausgang für Kopfhörer (4000 Ohm); Relais-Ausgang; Single-Paddle. Aufbau auf drei Steckkarten.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Mentioned in
• Gregor Ulsamer: "Faszination Morstetasten"

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
