• Country
• Germany

• Manufacturer / Brand
• LTP, Apparatewerk Lennartz & Boucke KG, Tübingen (Siehe auch LTP Himmelwerk AG)

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15857

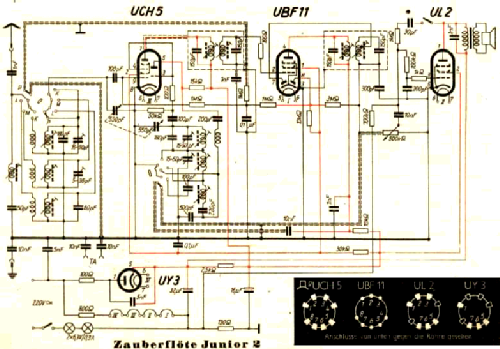

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH5 UBF11 or UF5 UL2_Valvo or UBL3 UY3

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberflöte Junior 2 - LTP, Apparatewerk Lennartz &

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 290 x 210 mm / 15.4 x 11.4 x 8.3 inch

• Notes

• KW-Lupe. ZF = 468 oder 473 je nach Gebiet.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 299.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Das Rundfunk-Jahr 1948/49 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funk-Technik (FT) ((Nr.14/1949 Seite 427))
