Allwellen-Spulenaggregat MK
Lüdke, Arthur (ALD); Berlin
- Country
- Germany
- Manufacturer / Brand
- Lüdke, Arthur (ALD); Berlin
- Year
- 1932 ??
- Category
- Radio part (not a module)
- Radiomuseum.org ID
- 243258
-
- Brand: Funkstern

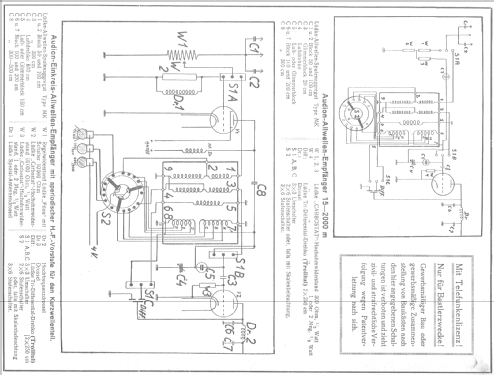

Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Allwellen-Spulenaggregat MK - Lüdke, Arthur ALD; Berlin
- Shape
- Chassis only or for «building in»
- Notes
-
Spulensatz mit Kurzwelle für Selbstbau-Empfänger; 6 Wellenbereiche: 15-30 m, 25-40 m, 35-65 m, 60-200 m, 200-600 m, 600-20000 m; Bewicklung der Spule im Rundfunkwellenbereich mit HF-Litze; passender, optionaler Abschirmbecher 80x140mm.
- Price in first year of sale
- 3.90 RM
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
