- Country
- Germany
- Manufacturer / Brand
- Lumophon, Bruckner & Stark, Nürnberg
- Year
- 1925/1926
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3224
-
- Brand: Lumeta

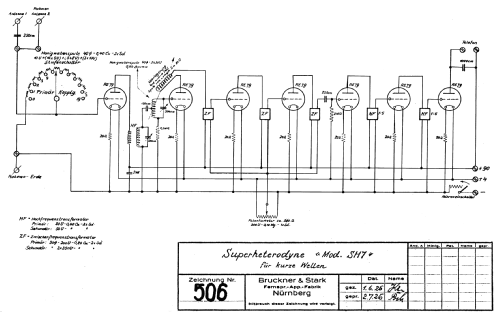

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: SH7 - Lumophon, Bruckner & Stark,
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
Erster deutscher Batterie-Super.
- Price in first year of sale
- 500.00 RM
- Source of data
- Katalog WEGA, Stuttgart 1925 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Info Dr. H. Börner without schematic
- Literature/Schematics (1)
- -- Original-techn. papers.
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
