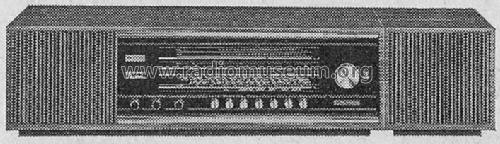

Violetta 500
Lumophon, Bruckner & Stark, Nürnberg
- Country
- Germany
- Manufacturer / Brand
- Lumophon, Bruckner & Stark, Nürnberg
- Year
- 1969/1970
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27609
-
- Brand: Lumeta
- Number of Transistors
- 27
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 220-240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Violetta 500 - Lumophon, Bruckner & Stark,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 690 x 190 x 230 mm / 27.2 x 7.5 x 9.1 inch
- Notes
- Stereo-Decoder 8 eingebaut; NF-Verstärker mit 2 Endstufen je 5 W.
Gehäuse: Edelholz, hell mattiert oder Schleiflack, weiss.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1969/1970
