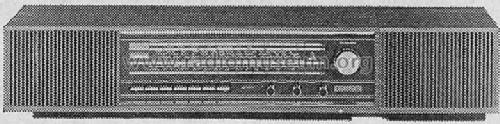

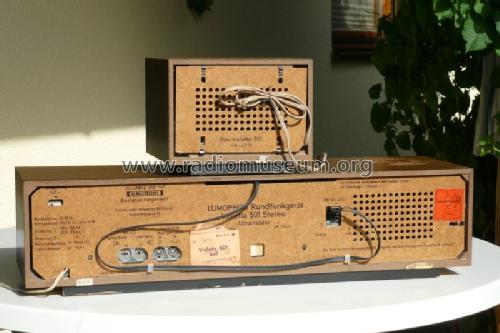

Violetta 501
Lumophon, Bruckner & Stark, Nürnberg
- Country
- Germany
- Manufacturer / Brand
- Lumophon, Bruckner & Stark, Nürnberg
- Year
- 1969–1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27610
-
- Brand: Lumeta
- Number of Transistors
- 21
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Violetta 501 - Lumophon, Bruckner & Stark,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 650 x 160 x 190 mm / 25.6 x 6.3 x 7.5 inch
- Notes
- Stereo-Decoder 10 eingebaut; NF-Verstärker mit 2 Endstufen je 4 W.
Gehäuse: Edelholz, hell mattiert oder Schleiflack, weiss.
- External source of data
- erb
- Source of data
- Handbuch VDRG 1969/1970
- Other Models
-
Here you find 302 models, 253 with images and 200 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Lumophon, Bruckner & Stark, Nürnberg
Collections
The model Violetta is part of the collections of the following members.
Forum contributions about this model: Lumophon, Bruckner &: Violetta 501
Threads: 1 | Posts: 1
Der Empfänger ist aus Teilen der Firma Grundig zusammengebaut.
Ulrich Piefke, 15.Sep.08
