- Country
- Germany
- Manufacturer / Brand
- Lumophon, Bruckner & Stark, Nürnberg
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3382
-
- Brand: Lumeta

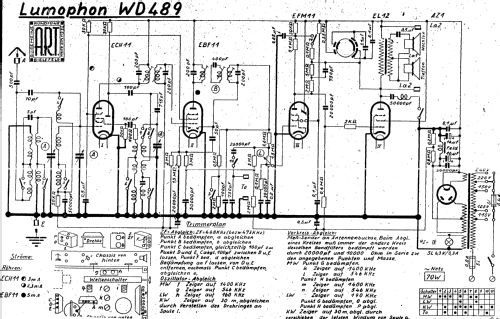

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: WD489 - Lumophon, Bruckner & Stark,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 590 x 550 x 390 mm / 23.2 x 21.7 x 15.4 inch
- Notes
- variable Bandbreite.
- Net weight (2.2 lb = 1 kg)
- 33.7 kg / 74 lb 3.7 oz (74.229 lb)
- Price in first year of sale
- 349.00 RM
- Source of data
- Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Mentioned in
- Funkschau (3840)
