• Country
• Germany

• Manufacturer / Brand
• Lumophon, Bruckner & Stark, Nürnberg

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3383

• • Brand: Lumeta

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

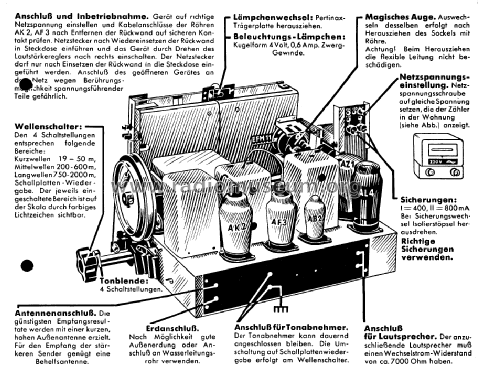

• Valves / Tubes
• AK2 AF3 AB2 AL4 EFM11 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

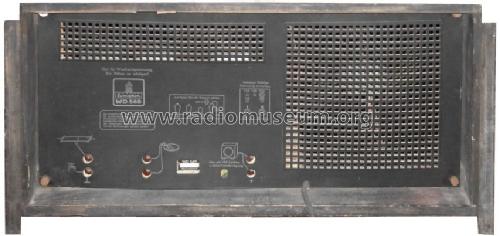

• Model: WD569 - Lumophon, Bruckner & Stark,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 660 x 320 x 350 mm / 26 x 12.6 x 13.8 inch

• Notes
• variable Bandbreite.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 239.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Other Models

• Here you find 302 models, 253 with images and 200 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
