• Country
• Germany

• Manufacturer / Brand
• Lumophon, Bruckner & Stark, Nürnberg

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3293

• • Brand: Lumeta

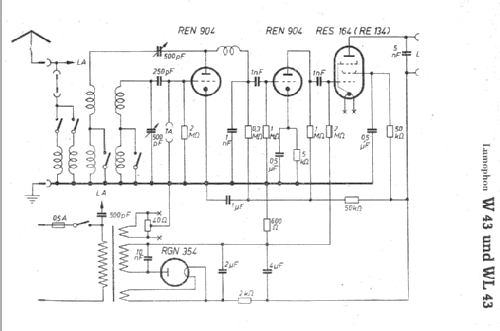

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• REN904 REN904 RE134 or RES164 RGN354

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Material
• Wooden case

• from Radiomuseum.org

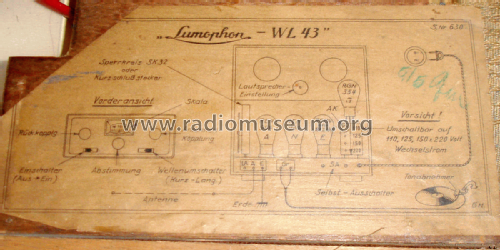

• Model: WL43 - Lumophon, Bruckner & Stark,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 330 x 395 x 205 mm / 13 x 15.6 x 8.1 inch

• Notes

• L = Long waves: 145 kHz - 490 kHz

  K = Broadcast waves: 520 kHz - 1,6 MHz

• Source of data
• Radiokatalog Band 1, Ernst Erb
