• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Lutron; Taipei

• Year
• 1990 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 347114

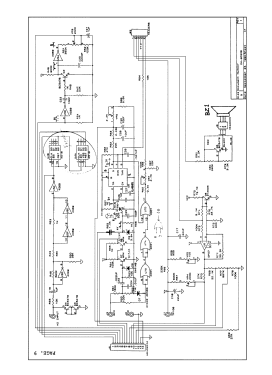

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BC547 2N3904 CR02AM or. P4M ICL7106 CD4070 TL062 CD4518 MC14069 NE555 CD4001 OP07 1N4001 1N4148

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / PP3: 1 x 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Automotive Meter DM-9030 - Lutron; Taipei

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 87 x 185 x 39 mm / 3.4 x 7.3 x 1.5 inch

• Notes

• Lutron Electronic Enterprise Co., Ltd., Digital Automotive Tester DM-9030

  3-½ digit (max. indication 999).

  Multi function measurement:
  D_CV, A_CV, D_CA, A_CA, Ohms, Temperature, Hz, RPM, DWELL angle, Diode, Continuity Beeper

  Each semiconductor type listed once.

• Net weight (2.2 lb = 1 kg)
• 0.322 kg / 0 lb 11.3 oz (0.709 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
