Digital Capacitance Meter DM-6013
Lutron; Taipei
- Country
- Taiwan (Republic of China)
- Manufacturer / Brand
- Lutron; Taipei
- Year
- 1983 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 347071
anibis ch 47527533 Marial Maga

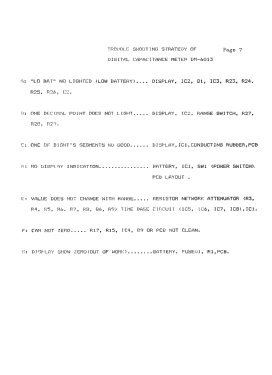

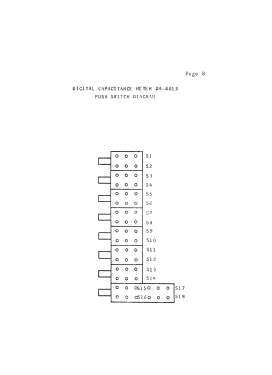

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- 9013 8550_Transistor 2N5246 ICL7106 CD4070 TL062 TL062 CD4069 CD4518 CD4518 CD4017 CD4016 unknown_Display
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / PP3: 1 x 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: Digital Capacitance Meter DM-6013 - Lutron; Taipei
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Lutron Electronic Enterprise Co., Ltd., Digital Capacitance Meter DM-6013
Each transistor type listed once
See also PeerTronic DM-6013
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
