Digital Clamp Meter DM-6055 /C /F early 6 x IC

Lutron; Taipei

Data
Forum
Pictures
Collections

  • Year
  • 1977–1988 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 347284

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 3
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / PP3: 1 x 9 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digital Clamp Meter DM-6055 /C /F [early 6 x IC] - Lutron; Taipei
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 70 x 237 x 36 mm / 2.8 x 9.3 x 1.4 inch
  • Notes

  • Lutron Electronic Enterprise Co., Ltd., Digital Clamp Meter DM-6055

    3½ digit 0.5" LCD display with data hold (max. indication 1999)

    Measurement:

    • VAC: 200 - 600 V
    • VDC: 200 - 600 V
    • R: 2000 Ω
    • A: 200; 1000A AC/DC
    • Temp:
      • /C: -40 - +750 ºC with Thermocouple K type TP01 or TP02A
      • /F: -40 -  +1400 ºF with Thermocouple K type TP03 or TP04

    See also DM-6055 (7 x IC) and DM-6055 (8 x IC)

  • Net weight (2.2 lb = 1 kg)
  • 0.4 kg / 0 lb 14.1 oz (0.881 lb)

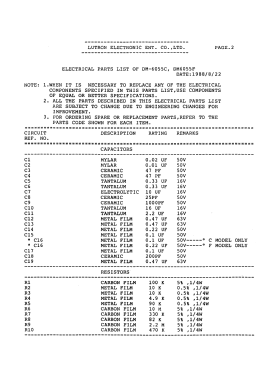

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
