• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Lutron; Taipei

• Year
• 1990 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 347285

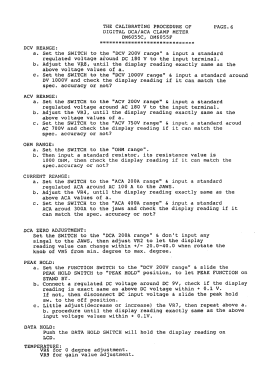

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• 2N3904 BC547 J305 CD4070 TL061 TL061 TL061 TL062 ICL7116CPL OP07 1N4148 1N9491B unknown_Display

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / PP3: 1 x 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

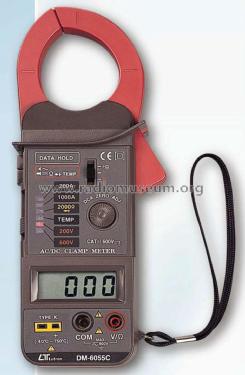

• Model: Digital Clamp Meter DM-6055 /C /F [middle 7 x IC] - Lutron; Taipei

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 70 x 237 x 36 mm / 2.8 x 9.3 x 1.4 inch

• Notes

• Lutron Electronic Enterprise Co., Ltd., Digital Clamp Meter DM-6055

  3½ digit 0.5" LCD display with data hold (max. indication 1999)

  Measurement:

  • V_AC: 200 - 600 V
  • V_DC: 200 - 600 V
  • R: 2000 Ω
  • A: 200; 1000A AC/DC
  • Temp:
    • /C: -40 - +750 ºC with Thermocouple K type TP01 or TP02A
    • /F: -40 -  +1400 ºF with Thermocouple K type TP03 or TP04

  See also DM-6055 (6 x IC) and DM-6055 (8 x IC)

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 21 models, 16 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lutron; Taipei
