• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Lutron; Taipei

• Year
• 1995 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 347191

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• 1802 VZ1

• Number of Transistors
• 5

• Semiconductors
• 2N5246 2SD882 BC547 BC547 ICL7106 µA741 MC7805 MC7905 78L05A 79L05 OP07 CD4070 1N4148 or. 1N9491B unknown_Display

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 or 220-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Milliohm Meter MO-2001 - Lutron; Taipei

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 160 x 120 x 85 mm / 6.3 x 4.7 x 3.3 inch

• Notes

• Lutron Electronic Enterprise Co., Ltd., Digital Milliohm Meter MO-2001

  3½ digit 0.7" LCD display (max. indication 1999)

  Measurement: 0.1 mΩ - 2000 Ω in 5 ranges (0.2; 2; 20; 200; 2000 Ω)

  Also sold as Hibok 201, Reed K-5090, Aktakom AM-6000, Extech 380460 (110V), Extech 380462 (220V)

  Note: 2N5246 = J305

• Net weight (2.2 lb = 1 kg)
• 0.680 kg / 1 lb 8 oz (1.498 lb)

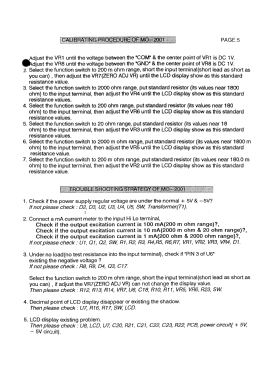

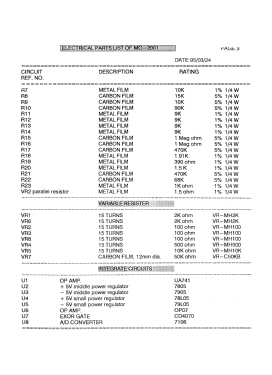

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
