Digital Wattmeter DW-6060

Lutron; Taipei

  • Year
  • 1984 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 347279

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 1
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / PP3: 1 x 9 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digital Wattmeter DW-6060 - Lutron; Taipei
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes
  • Lutron Electronic Enterprise Co., Ltd., Digital Wattmeter DW-6060

    3-½ digit LCD display (max. indication 1999).



  • Net weight (2.2 lb = 1 kg)
  • 0.5 kg / 1 lb 1.6 oz (1.101 lb)

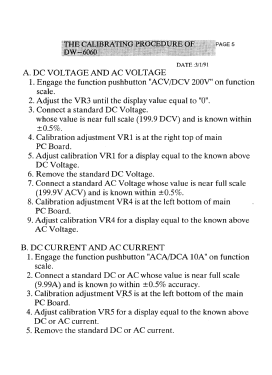

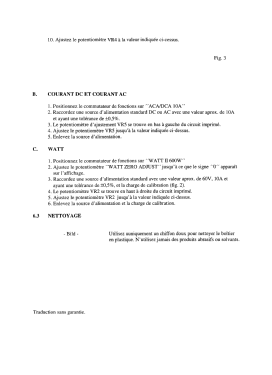

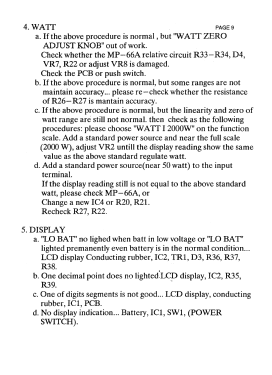

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
