• Country
• Japan

• Manufacturer / Brand
• Luxman, Lux Corp.; Kinsuido of Osaka

• Year
• 1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 289126

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 70 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: AM/FM Stereo Tuner-Amplifier R-5030 - Luxman, Lux Corp.; Kinsuido of

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 438 x 85 x 384 mm / 17.2 x 3.3 x 15.1 inch

• Notes

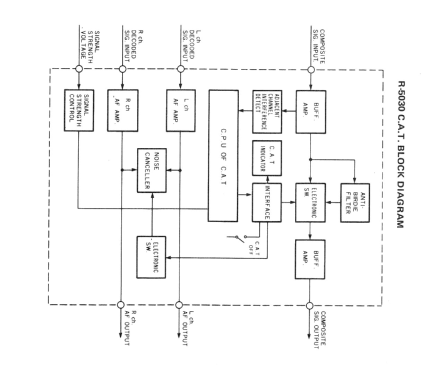

• AM/FM Stereo Tuner-Amplifier Model Luxman R-5030.
  Tuning range: FM, MW
  Power output: 35 watts per channel into 8Ω (stereo)
  Frequency response: 10Hz to 70kHz
  Total harmonic distortion: 0.03%
  Input sensitivity: 2.2mV (MM), 150mV (line)
  Signal to noise ratio: 77dB (MM), 102dB (line)

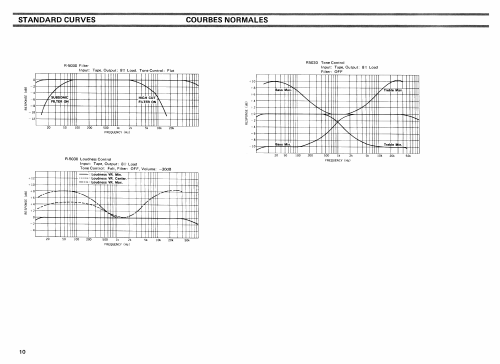

  Loudness, Subsonic Filter, High Cut
  Bass- & Treble Control

• Net weight (2.2 lb = 1 kg)
• 7.7 kg / 16 lb 15.4 oz (16.96 lb)

• Mentioned in
• - - Manufacturers Literature (Service & Owners Manual)

• Literature/Schematics (1)

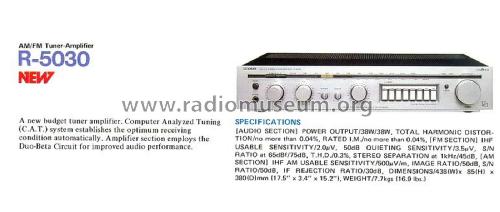

• -- Original prospect or advert (Luxman Catalogue - 'Products')

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
