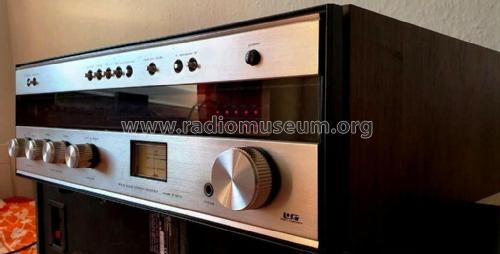

L&G Solid State Stereo Receiver R-3800

Luxman, Lux Corp.; Kinsuido of Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1975 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 260143

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: L&G Solid State Stereo Receiver R-3800 - Luxman, Lux Corp.; Kinsuido of
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 485 x 170 x 353 mm / 19.1 x 6.7 x 13.9 inch
  • Notes

  • L&G AM/FM Stereo Receiver Model R-3800.
    Tuning Range: FM 88 - 108 MHz, AM 525 - 1605 kHz
    2x 50 Watt RMS into 4 Ohms
    2x 36 Watt RMS into 8 Ohms
    Frequency response: 10 - 50000 Hz
    THD: 0.08%
    Loudness, Low Cut, High Cut, Muting
    Peak Level Indicator (2x6 LED's)
    Phono IN, AUX IN, Tape IN
    Speakers A, B
    Exklusiv Vertrieb in Deutschland:
    Euro-Photo Handelsgesellschaft m.b.H.
    Linsellesstrasse 142-156
    4156 Willich 3-Schiefbahn


  • Net weight (2.2 lb = 1 kg)
  • 13 kg / 28 lb 10.1 oz (28.634 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
