Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II

Luxman, Lux Corp.; Kinsuido of Osaka

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Luxman, Lux Corp.; Kinsuido of Osaka

Year
1975 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
148286

Schematics

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 3114629) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (3)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 3114630) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (3)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 3114631) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (3)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 3114112) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 3114113) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 3114114) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 3114115) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 765435) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (2)
By courtesy of Lauritz.com (Bild bearbeitet)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 765436) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (2)
By courtesy of Lauritz.com (Bild bearbeitet)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 765437) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (2)
By courtesy of Lauritz.com (Bild bearbeitet)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 575409) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (2)
Original prospekt in 1975.

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 1365154) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 1365155) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 1365156) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 1365157) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 1365158) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 1365159) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

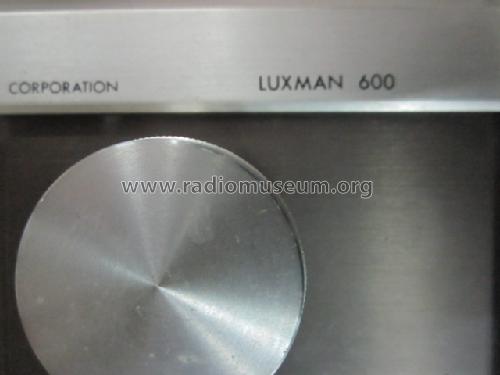

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 1365161) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (1)

Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II; Luxman, Lux Corp.; (ID = 1602413) Radio — Luxman, Lux Corp.; Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II (2)
All Akustik Brochure - 1975 - Seite 05

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
42

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 50-60 Hz, 220 or 100; 120; 220; 240 Volt

Loudspeaker
- This model requires external speaker(s).

Power out
60 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Solid State AM/FM Multiplex Stereo Receiver R600 S, E, E II - Luxman, Lux Corp.; Kinsuido of

Shape
Book-shelf unit.

Dimensions (WHD)
485 x 145 x 360 mm / 19.1 x 5.7 x 14.2 inch

Notes
AM/FM-Receiver mit 2 x 30 Watt Sinus an 8 Ohm, Frequenzgang 10 - 50.000 Hz (-3dB).
Feldstärkeinstrument, schaltbare Tiefen- und Höhenfilter, Klanginstellung getrennt für beide Kanäle, Kurzschluss-Sicherung.
Anschluss von 2 LS-Paaren.

Versionen:
- R600 S, Semco-Modell für Skandinavien. Nur 220 V (Netztrafo mit 1 Primärwicklung), Netzschalter 2-polig, keine AC-Outlets. 3 Sekundärsicherungen.
- R600 E, E II, Modell für Europa und Kanada. Gemäss Typschild für 120, 220 oder 240 V voreingestellt. Intern auf 4 Spannungen 100 - 240 V umsteckbar. Netzschalter 1-polig. 2 AC-Outlets, davon 1 geschaltet. 1 Sekundärsicherung für Skalenbeleuchtung.

Source of data
-- Original prospect or advert

Literature/Schematics (1)
-- Original-techn. papers.

Author
Model page created by Franz Scharner. See "Data change" for further contributors.
