• Country
• Japan

• Manufacturer / Brand
• Luxman, Lux Corp.; Kinsuido of Osaka

• Year
• 1969 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 211643

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF86 EF86 ECC85 ECC85 50CA10 50CA10 50CA10 50CA10

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

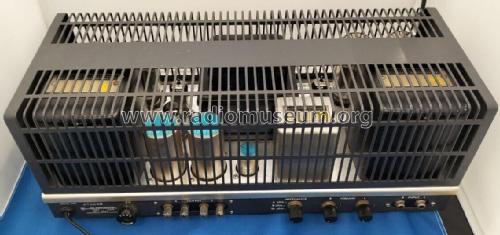

• Model: Stereo Power Amplifier MQ60 - Luxman, Lux Corp.; Kinsuido of

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 410 x 160 x 205 mm / 16.1 x 6.3 x 8.1 inch

• Notes

• All-Triode power amplifier (the EF86 is triode-connected).

  See also Luxkit KMQ60.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
