• Country
• Japan

• Manufacturer / Brand
• Luxman, Lux Corp.; Kinsuido of Osaka

• Year
• 1980 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 327810

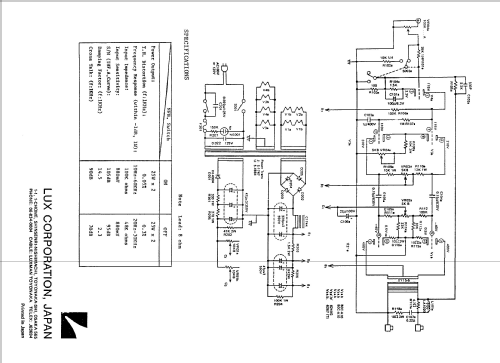

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6267 or EF86 6240G 50CA10 50CA10 6267 or EF86 6240G 50CA10 50CA10

• Number of Transistors

• Semiconductors
• 1N4004 RA-1_Diode

• Main principle
• Audio-Amplification; Hi-Fi-High End products

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 100 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (60 W max.)

• Material
• Metal case

• from Radiomuseum.org

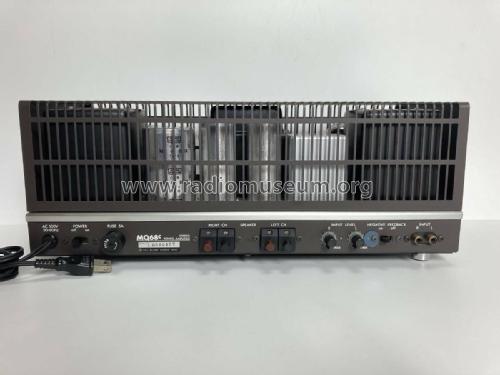

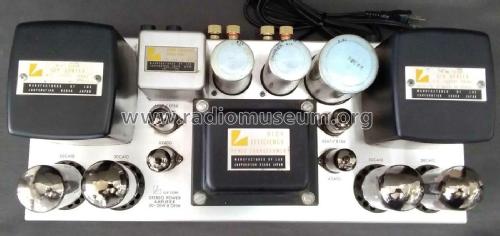

• Model: Stereo Power Amplifier MQ68C - Luxman, Lux Corp.; Kinsuido of

• Shape
• Tablemodel, low profile (big size).

• Notes

• Luxman Triode Power Amplifier MQ68C, Negative Feedback can be switched off.

  Some models can have 6AQ8 tubes instead of the 6240G if the MH-943 modification has been made.

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
